Galaxy Boat Series

Call for Price

Galaxy Boat Table

Unique traditional style conference table
Height adjustable 23-30”h or 29”-36”
Leg style seating along entire table perimeter
Patented Deluxe Track Locking System with Sure-Lock Safety Latch
Fully assembled- Just unfold for use
¾” top available in HPL; side panels match top
Customizable finishes

Top Selection: HPL or TFL
Top
Edge Selection: T-Mold or 3mm
Edge
Paint Selection - Apron/ Leg / Lock	Black Brown Charcoal Gray Metallic Silver Platinum Putty Tan Clear

SKU: N/A Category: Conference Tags: d, hpl_only

Product Details

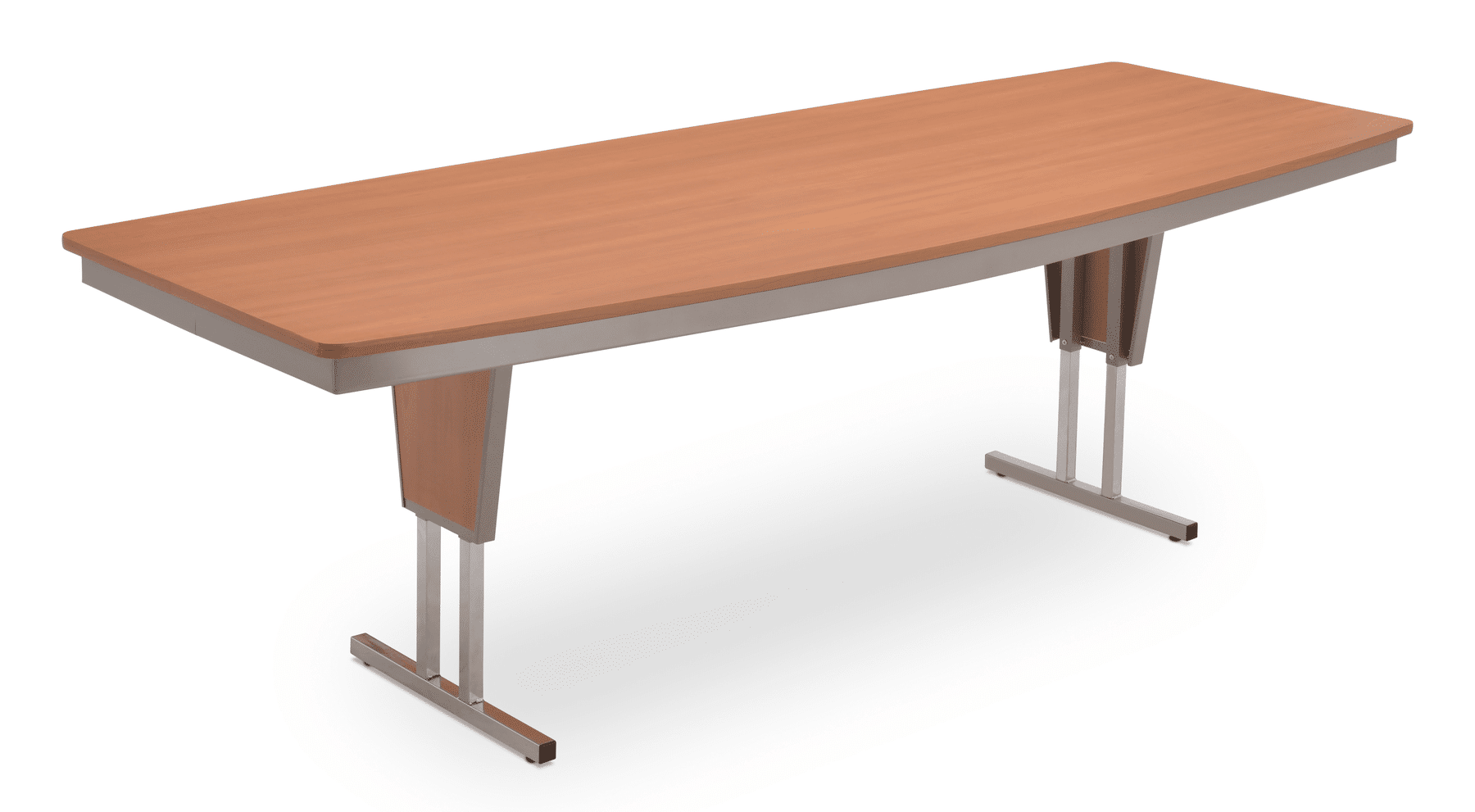

The Galaxy Conference Table is fully assembled, folding boat shape traditional conference table that is height adjustable: 23-30”h or 29”-36”. Height adjustment accommodates varying users physical requirements; allows seating along entire table perimeter. The Galaxy top is 3/4” particleboard core or ¾” plywood core with high pressure laminate (HPL) top surface and moisture resistant bottom surface with a protective T-mold edge. The top is supported with a strong, rigid 2 ¼” 18 gauge roll formed edge steel apron. For tables over 72”, a 5” wide “V” channel 20 gauge steel stretcher bar is secured to the underside of top for additional strength and rigidity. Galaxy height adjustable leg consists of upper and lower sections. The lower section is 1 1/8” sq 18 gauge chromed steel that slides into 1 ¼” sq 18 gauge steel upper section. Leg adjusts in 1” increments and have matching panels to top laminate. Leg locks/unlocks with Barricks patented Deluxe Track Locking System with Sure-Lock Safety Latch. Adjustable levelers ensure proper positioning and alignment on uneven floors. Barricks stocks 30 HPL options to create your customized design.

Galaxy Boat Series- 30″ Height

HPL Top Particleboard Core

Size	T-Mold Model #	Weight
30x36x72	GXB-3672-PT	TBD
30x36x96	GXB-3696-PT	TBD
38x48x96	GXB-4896-PT	TBD

HPL Top Plywood Core

Size	T-Mold Model #	Weight
30x36x72	GXB-3672-PT	TBD
30x36x96	GXB-3696-PT	TBD
38x48x96	GXB-4896-PT	TBD

Features & Options

Strong, Rigid Apron

18 gauge 2 1⁄4” h steel apron with rolled bottom edge for added strength, attached with coarse, deep threaded screws designed specifically for particleboard and plywood.

T-mold Edge
Rounded Corners

Rounded plastic molding secures to top’s edge using friction barb; provides impact protection to sides. T-mold edged tables have rounded corners.

Deluxe Track Locking System with Sure Lock Safety Latch

Heavy duty dual track mechanism with spring trigger that lets leg fold in a smooth even motion; also has secondary safety latch.

Height Adjustable Leg

Adjustable leg uses a spring mechanism that when pressed to retract allows leg to be adjusted in 1” increments.

Adjustable Levelers

Adjustable levelers provide stability on uneven floors and ensure proper height positioning to adjoining tables.

Options:

Custom laminate

Specification & Materials

Top:

HPL Particle Board Core- 3/4″ th particleboard core with high pressure laminate (HPL) top surface, moisture resistant backer bottom surface finished with a protective edge option- t-mold or 3mm.

HPL Plywood Core- 3/4″ plywood core with high pressure laminate (HPL) top surface, moisture resistant backer bottom surface finished with a protective edge option- t-mold or 3mm.

Edging:

T-mold- an extruded plastic edging in the shape of a “T”. The stem part is barbed and inserted into a slot in the core board. The friction barbs prevent the t-mold from coming out of the core. T-mold external surface is slightly rounded and provides protection against impacts to side. T-mold is an economical edge.

Apron:

Strong, rigid 2 1/4″ 18 gauge steel with rolled bottom edge for added strength attached with coarse, deep threaded screws designed specifically for particleboard and plywood.

For tables over 72″, a 5″ wide “V” channel 20 gauge steel stretcher bar secured to top underside for additional rigidity and strength.

Legs:

Galaxy leg consists of upper and lower section. The lower section is 1 1/8″ sq 18 gauge chromed steel that slides into 1 1/4″ sq 18 gauge steel upper section. Legs adjusts in 1” increments, with two range options, 23-30”h or 29”-36”h. Leg has end panel matching laminate top. Leg easily locks/unlocks with Barrick patented Deluxe Track Locking System with Sure-Lock Safety Latch. Adjustable levelers ensure proper positioning and alignment on uneven floors.
